PRODUCT INFOproduct
Timing PRO Elite
Timing PRO Elite Timing System
．12V DC, 3A max
．14 A-h internal battery, gives more than 5 hours of use
．LF transmit, HF receive tag signal
．Support 2x 5m Timing Mats, or 4x 2.5m Timing Mats
．Internal memory store 40 millions of tag records
．Support USB memory stick to download tag records
．Real-time data transmission by Ethernet
．Read Shoe tag, Bib tag, Swimming/Triathlon/Cycling tag, and Wrist tag

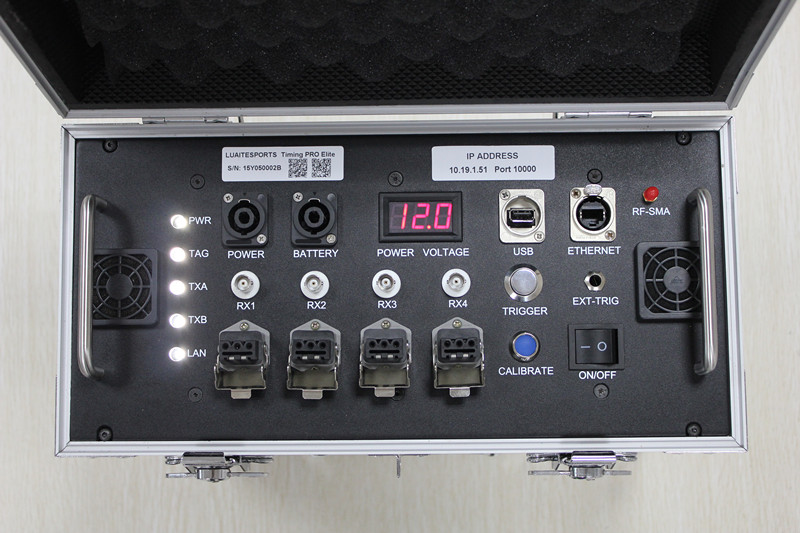

．Indicators: ON/OFF, Battery voltage, Antenna tuning, LAN activity, Valid ID received
．Trigger button (inserts digital marker into data stream)
．External gun-trigger port
．Automatic antenna tuning, and can be manually invoked
．Reliable anti-collision protocol
．Enhanced anti-interference DSP receiver
．12 V external power input supported

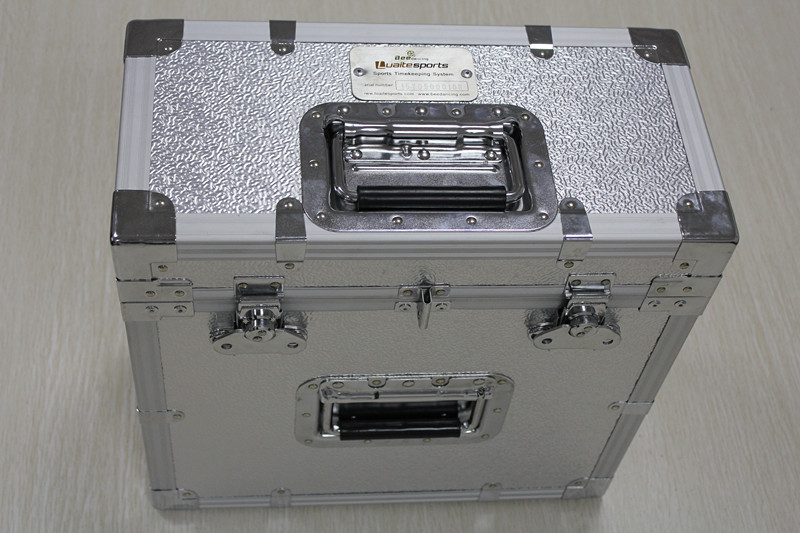

．Portable aluminum hard case
．Physical Size: 39cm x 38cm x 19cm
．Weight: 12.8kg/17.5kg (battery included)
Timing Reader System Configuration Parameter Contrast Table
※横にスライドしてご覧いただけます。
Descriptions |
Timing PRO Elite |
Timing One Elite |
Timing Club |
Timing Fast |
Operation System |
★ |
★ |
— |
— |
DC in |
12V 3A |
12V 3A |
12V 3A |
12V 1A |
Smart Charger |
★ |
★ |
★ |
★ |
Reverse Protection |
★ |
★ |
— |
— |
External DC Supply |
★ |
★ |
★ |
★ |
Number of DC Sockets |
2 |
2 |
2 |
1 |
Battery Capacity |
2×12Ah |
2x12Ah |
2x12Ah |
1x7.2Ah |
Battery Life |
>7H |
>8H |
>8H |
>8H |
Number of RX Ports |
4 |
2 |
2 |
2 |
Number of TX Ports |
4 |
2 |
2 |
— |
Internal Memory |
★ |
★ |
— |
— |
Memory Capacity |
40.000.000 |
40.000.000 |
— |
— |
LF Transmitter |
★ |
★ |
★ |
— |
HF Receiver |
★ |
★ |
★ |
★ |
Anti-Collision |
★ |
★ |
★ |
★ |
DSP Enhanced Receiver |
★ |
★ |
★ |
★ |
Anti-Interference Module |
★ |
★ |
★ |
★ |
IP Configuration by USB |
★ |
★ |
— |
— |
Data Transfer by USB |
★ |
★ |
— |
— |
USB Port to PC |
— |
— |
★ |
★ |
Ethernet Port to PC |
★ |
★ |
— |
— |
Ethernet Port |
★ |
★ |
— |
— |
WIFI Extension |
★ |
★ |
— |
— |
Indicator of On/Off |
★ |
★ |
— |
— |
Indicator of DC Voltage |
★ |
★ |
★ |
★ |
Indicator of Ant Tunning |
★ |
★ |
— |
— |
Indicator of Valid Read |
★ |
★ |
— |
— |
Indicator of Network |
★ |
★ |
★ |
★ |
Radiator Fan |
★ |
★ |
★ |
— |
Trigger Button |
★ |
★ |
— |
— |
External Trigger Port |
★ |
★ |
— |
— |
Auto-Tunning |
★ |
★ |
★ |
★ |
Tune Manually |
★ |
★ |
★ |
— |
Housing Material |
Aluminum Frame |
Aluminum Frame |
All Aluminum |
All Aluminum |
IP Rating |
General |
General |
— |
— |
Anti-Vibration |
General |
General |
一 |
— |
Exterior Dimensions |
39×38×19 |
39×38×19 |
45×25×15 |
36×36×11 |
Weight |
12.8kg/17.5kg |
11.5kg/16.2kg |
6.4kg/11.4kg |
5kg/7.3kg |
Shoe Tags |
★ |
★ |
★ |
— |
Big Bib Tags |
★ |
★ |
★ |
— |
Small Bib Tags |
★ |
★ |
★ |
— |
Multisport Tags |
★ |
★ |
★ |
— |
Power Tags |
★ |
★ |
★ |
★ |
L Type Passive Tags |
★ |
★ |
★ |
— |
Icon Descriptions |
★Support —Nonsupport |
|||
