PRODUCT INFOproduct
Timing Fast

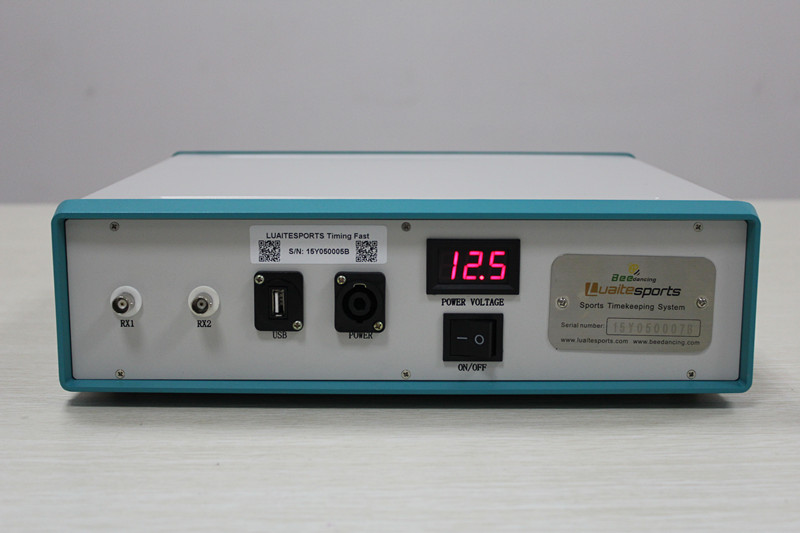

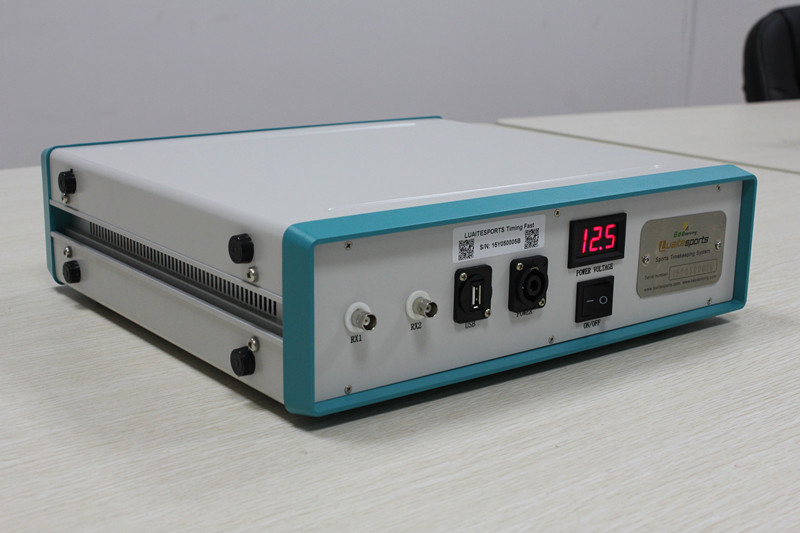

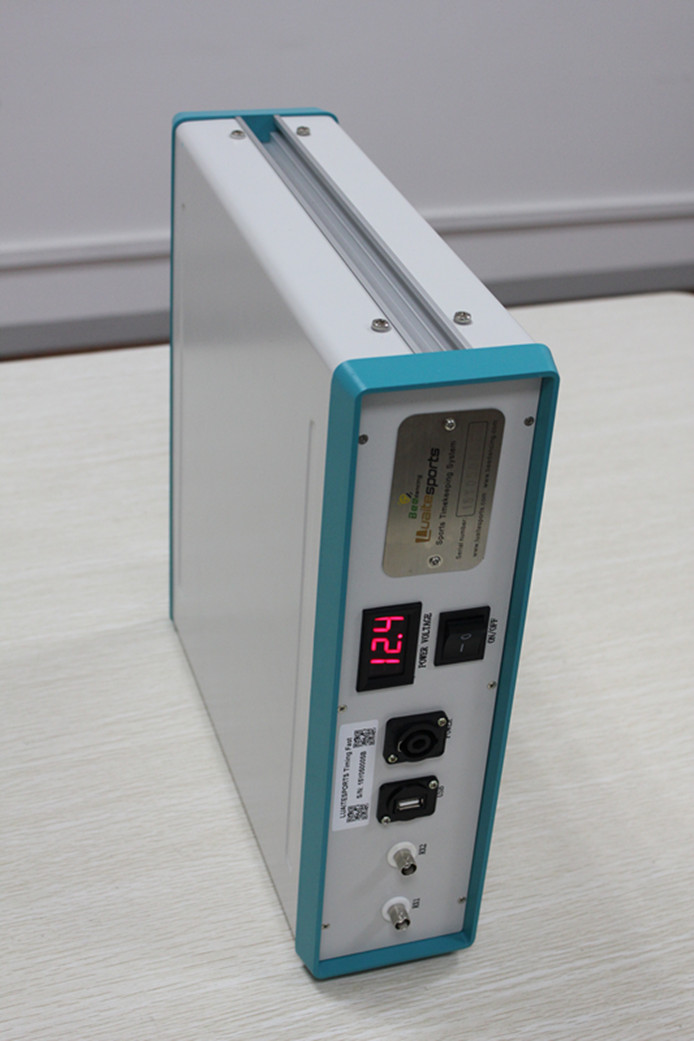

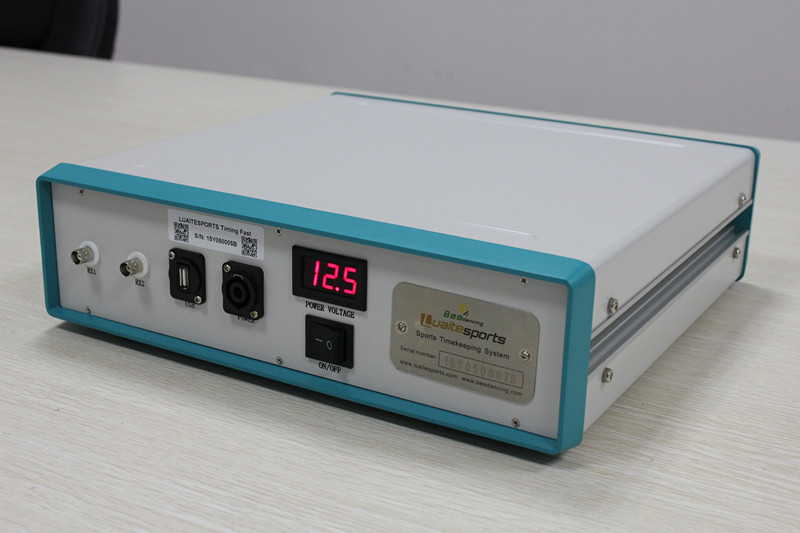

Timing Fast Timing System
．12V DC, 1A max
．7 A-h internal battery, gives more than 8 hours of use
．HF receive tag signal
．Support 2x 5m Timing Mats, or 2x 2.5m Timing Mats
．Real-time data transmission by USB port
．Read active cycling tag, and active wrist tag
．Indicators: ON/OFF, Battery voltage
．Reliable anti-collision protocol
．Enhanced anti-interference DSP receiver
．12 V external power input supported
．Portable aluminum case
．Physical Size: 36cm x 36cm x 11cm
．Weight: 5kg /7.3kg (battery included)
Timing Reader System Configuration Parameter Contrast Table
※横にスライドしてご覧いただけます。
Descriptions |
Timing PRO Elite |
Timing One Elite |
Timing Club |
Timing Fast |
Operation System |
★ |
★ |
— |
— |
DC in |
12V 3A |
12V 3A |
12V 3A |
12V 1A |
Smart Charger |
★ |
★ |
★ |
★ |
Reverse Protection |
★ |
★ |
— |
— |
External DC Supply |
★ |
★ |
★ |
★ |
Number of DC Sockets |
2 |
2 |
2 |
1 |
Battery Capacity |
2×12Ah |
2x12Ah |
2x12Ah |
1x7.2Ah |
Battery Life |
>7H |
>8H |
>8H |
>8H |
Number of RX Ports |
4 |
2 |
2 |
2 |
Number of TX Ports |
4 |
2 |
2 |
— |
Internal Memory |
★ |
★ |
— |
— |
Memory Capacity |
40.000.000 |
40.000.000 |
— |
— |
LF Transmitter |
★ |
★ |
★ |
— |
HF Receiver |
★ |
★ |
★ |
★ |
Anti-Collision |
★ |
★ |
★ |
★ |
DSP Enhanced Receiver |
★ |
★ |
★ |
★ |
Anti-Interference Module |
★ |
★ |
★ |
★ |
IP Configuration by USB |
★ |
★ |
— |
— |
Data Transfer by USB |
★ |
★ |
— |
— |
USB Port to PC |
— |
— |
★ |
★ |
Ethernet Port to PC |
★ |
★ |
— |
— |
Ethernet Port |
★ |
★ |
— |
— |
WIFI Extension |
★ |
★ |
— |
— |
Indicator of On/Off |
★ |
★ |
— |
— |
Indicator of DC Voltage |
★ |
★ |
★ |
★ |
Indicator of Ant Tunning |
★ |
★ |
— |
— |
Indicator of Valid Read |
★ |
★ |
— |
— |
Indicator of Network |
★ |
★ |
★ |
★ |
Radiator Fan |
★ |
★ |
★ |
— |
Trigger Button |
★ |
★ |
— |
— |
External Trigger Port |
★ |
★ |
— |
— |
Auto-Tunning |
★ |
★ |
★ |
★ |
Tune Manually |
★ |
★ |
★ |
— |
Housing Material |
Aluminum Frame |
Aluminum Frame |
All Aluminum |
All Aluminum |
IP Rating |
General |
General |
— |
— |
Anti-Vibration |
General |
General |
一 |
— |
Exterior Dimensions |
39×38×19 |
39×38×19 |
45×25×15 |
36×36×11 |
Weight |
12.8kg/17.5kg |
11.5kg/16.2kg |
6.4kg/11.4kg |
5kg/7.3kg |
Shoe Tags |
★ |
★ |
★ |
— |
Big Bib Tags |
★ |
★ |
★ |
— |
Small Bib Tags |
★ |
★ |
★ |
— |
Multisport Tags |
★ |
★ |
★ |
— |
Power Tags |
★ |
★ |
★ |
★ |
L Type Passive Tags |
★ |
★ |
★ |
— |
Icon Descriptions |
★Support —Nonsupport |
|||
